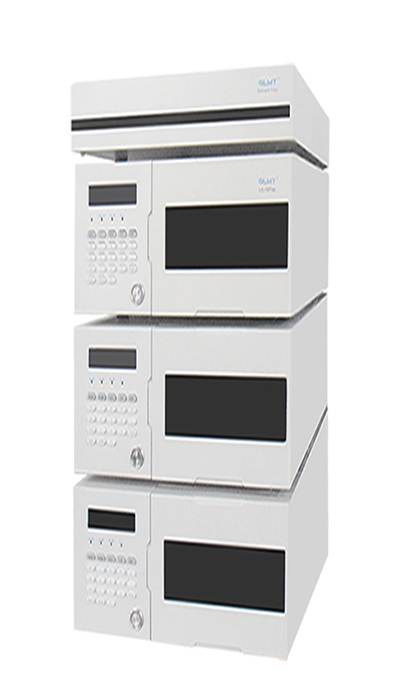

LC-60Tvp High Pressure Solvent Delivery System
LC-60Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC. laboratory chemical reaction infusion and chromatography and etc.
?
Overview：
LC-60Tvp Liquid Pump was developed on the basis of STI501 Liquid Chromatography, adopted advanced technology and design of the United States.
LC-60Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC. laboratory chemical reaction infusion and chromatography and etc.
?Features:
●Unique pool structure ensures the accuracy and sensitivity of the instrument
●Easy maintenance and service for all wetted parts
●High-quality structure
●Long life deuterium lamp
●Improve the maximum limited pressure by precise tranducer
●Accord with GMP/GLP, ISO9001,21 CFR PartⅡwith Surwit CDS(Software)
●Online Washing Device while analysis
●Self-priming pump head requires no manual priming
●Available with micro, analytical, semi-prep, and prep pump heads
●Programmable solvent compressibility compensation
●Easy maintenance and service for all wetted parts
????????????
Specifications:
|
Flow Range |
0.001-9.999ml/min |
|
Delivery method |
Double piston(Main & Auxiliary) |
|
Pump head |
10ml SST/Peek analytical |
|
Accuracy |
±1% or ±2μL/min, whichever is greater |
|
±1% or± 1μL/min, whichever is greater(Micro) |
|
|
Flow rate setting |
0-0.10ml/min. 0.010inc. |
|
0.10-0.90ml/min 0.010inc. |
|
|
1.0ml/min +0.10inc |
|
|
Precision |
0.1% RSD |
|
Pmax |
9999psi |
|
System connections |
1/66’’ capillaries |
|
Dimensions |
H60mm*W260mm*D420mm |
|
Weight. |
11kg |
|
Power input |
85 to 264VAC, 47 to 63 Hz, 60 Watts |
|
Display |
300mm |
