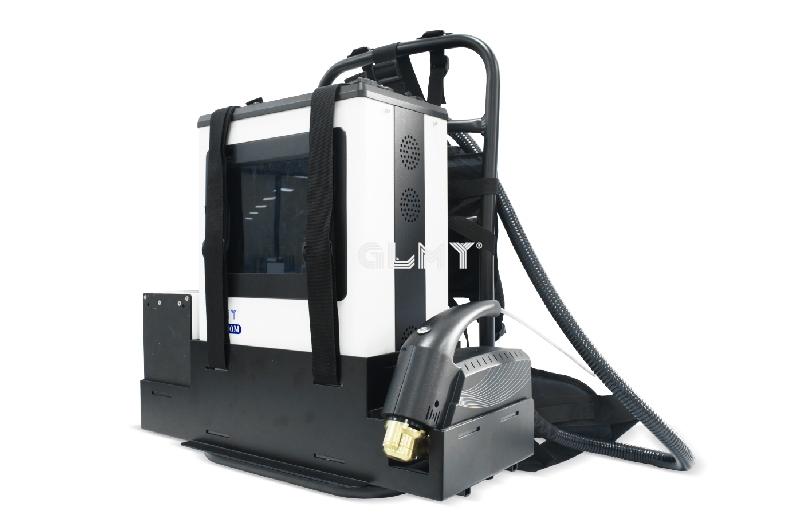

GLMY CX-9900M Alloy Mobile Analysis Spectrometer
GLMY CX-9900M Alloy Mobile Analysis Spectrometer
?
Overview：
Europe Technology was introduced, first manufacturer of mobile metal analyzer in China, Break the technological monopoly, small volume, light-weight
Applied with ccd/cmos optical technology and modern microelectronic components; it is the best choice for the analysis of non-metallic elements such as C, P, S, B, Sn, As in those large metal components which are not easy to cut.
?Features:
1.Can analyze all kinds of metal materials
2.Improved optical system makes it suitable for analysis needs under various circumstances, no matter outside or high altitude. High accuracy and stability.
3.Integrated design, portable, can be divided for transportation Battery pack can be used for ccd/cmos, hundreds of excitation for once charge
4.Typical Pashce-Runge Structure. Core parts are from top global suppliers, ensure the optical performance
5.HEPS digital spark light source improves the stability of discharging, ensures the analysis accuracy.
6.High-end ARM processor, high-speed data collection and process synchronously, only 20 seconds is needed for one analysis Optimized data stability and good data consistency for analysis in different periods.
7.It is free to extend curves, change or add channel in same matrix. Hard configuration is not needed for adding new matrix, free technical support and software update
8.Simple and elegant outlook design, optimized property, cost-effective, low energy consumption Focus on customer requirements, offer in-time after-sale service.
????????????
Specifications:
|
Optical Structure |
Pachen-Rounge Mount |
|
Diameter of Rowland Circle |
350mm |
|
Wavelength Range |
170nm-650nm |
|
Detector |
ccd/cmos(charge-coupled device) |
|
Pixel Resolution |
30pm |
|
Full Spectrum |
Cover the whole element analysis |
|
Light Source |
HEPS digital spark light source |
|
Spark Frequency |
100-1000Hz |
|
Plasma Current |
1-80 A |
|
Ignition Voltage |
>8000V |
|
Analysis Matrix |
Fe base, Al base, Cu base, Ni base. Mg base, Pb base |
|
Runing Temperature |
10°C-30°C |
|
Relative humidity |
≤85% |
|
Power |
AC220V / 50Hz |
|
Power consumption |
Excitation: 300W, Stand by: 100W |
|
Argon Quality |
99 999%, Argon Pressure*4MPa |
|
Argon Consumption |
6L/min during spark mode |
The CX-9900M mobile direct reading spectrometer has high analysis accuracy, convenient operation, flexible application, good stability, small volume, and light weight. It can directly perform metal analysis on the testing site and is suitable for other large metal components that are not convenient to cut.
