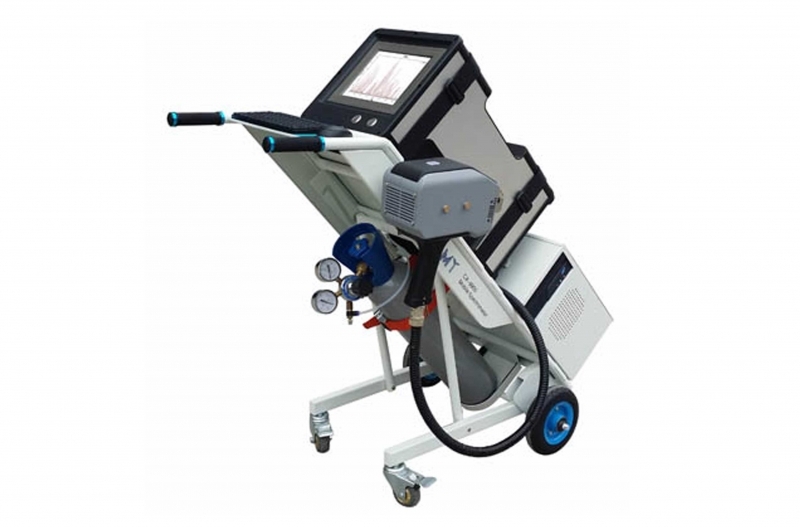

CX-9900 mobile metal analyzer
CX-9900 mobile metal analyzer
?
Overview：
CX-9900 mobile metal analyzer is a mobile arc spark spectrometer ideal for many
applications in the metal producing, processing, and recycling industries.
CX-9900 mobile metal analyzer has advantages of high precision and good
stability of analysis, easily operation, and extensive applications, small
size, light in weight. CX-9900 mobile analyzer can be used in identification of
materials in processing factory, structure material analysis in petrochemical
equipment, and metal analysis in recycling industry.
CX-9900 mobile spectrometer is metal analyzer with CCD optical technology and modern microelectronics components.
CX-9900 mobile spectrometer is your choice for analysis of C, P, S, B, Sn, As and N and other non-metallic elements and other metal contents in inconvenient cutting large Metal components. It can analyze various forms of metal materials, such as: pipe, bar, valves, welds, tanks, castings and so on. The CX-9900 Mobile Spectrometer can meet your analytical requirements, whether in the factory premises or outside the factory, in scrap yards, submerged submarine tanks, or on high-altitude ladders in chemical plants.
?Features:
1. Europe Technology was introduced, first manufacturer of mobile metal
analyzer in China, Break the technological monopoly, small volume, light-weight
2. Applied with CCD optical technology and modern microelectronic components; it is the best choice for the analysis of non-metallic elements such as C, P, S, B, Sn, As in those large metal components which are not easy to cut.
3. Can analyze all kinds of metal materials
4. Improved optical system makes it suitable for analysis needs under various circumstances, no matter outside or high altitude. High accuracy and stability.
5. Integrated design, portable, can be divided for transportation
6. Battery pack can be used for CCD, hundreds of excitation for once charge
7. Typical Pashce-Runge Structure
8. Core parts are from top global suppliers, ensure the optical performance
9. HEPS digital spark light source improves the stability of discharging, ensures the analysis accuracy.
10. High-end ARM processor, high-speed data collection and process synchronously, only 20 seconds is needed for one analysis
11. Optimized data stability and good data consistency for analysis in different periods.
12. It is free to extend curves, change or add channel in same matrix. Hard configuration is not needed for adding new matrix, free technical support and software update
13. Simple and elegant outlook design, optimized property, cost-effective, low energy consumption
14. Focus on customer requirements, offer in-time after-sale service
????????????
Specifications:
|
Optical System |
Optical Structure |
Pachen-Rounge Mount |
|
Diameter of Rowland Circle |
350mm |
|
|
Wavelength Range |
170nm-650nm |
|
|
Detector |
CCD(charge-coupled device) |
|
|
Pixel Resolution |
30pm |
|
|
Full Spectrum |
Cover the whole element analysis |
|
|
Light source system |
Type |
HEPS digital spark light source |
|
Spark Frequency |
100-1000Hz |
|
|
Plasma Current |
1-80A |
|
|
Ignition Voltage |
>8000V |
|
|
Excitation Stand |
Jet electrode technology reduces the argon gas consumption, increasing the use efficiency of the argon gas |
|
|
Good heat dissipation, Excitation temperation increase was less than 5℃ for 100 times excitation continually |
||
|
Ensure the accuracy of the analysis under the condition of heavy load data |
||
|
Others |
Analysis Matrix |
Fe base, Al base, Cu base, Ni base, Mg base, Pb base |
|
Host dimension |
600mm(L)*345mm(W)*345mm(H) |
|
|
Lorry dimension |
1400mm(L)*640mm(W)*250mm(H) |
|
|
Excitation gun dimension |
400mm(L)*350mm(W)*150mm(H) |
|
|
Weight |
Host: 25kg, Lorry: 20kg, Excitation gun: 2.5kg |
|
|
Runing Temperature |
10℃-30℃ |
|
|
Relative humidity |
≤85% |
|
|
Power |
AC220V / 50Hz |
|
|
Power consumption |
Excitation: 300W, Stand by: 100W |
|
|
Argon Quality |
99.999%, Argon Pressure≥4MPa |
|
|
Argon Consumption |
6L/min during spark mode |
|
In the fields of Metallurgy, casting, machining, automobile manufacture,
aerospace, weapons, metal processing, production technology control, furnace
tests, laboratory inspection
