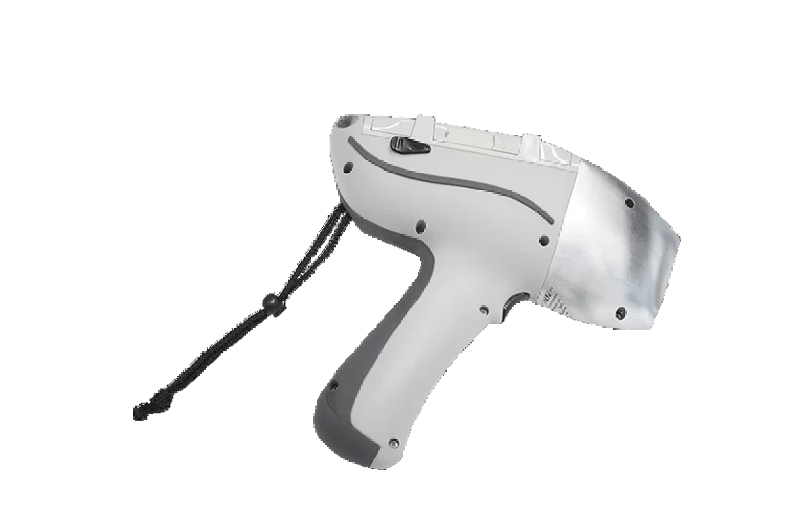

Elvatech ProSpector 2 Handheld XRF Analyzer
Elvatech ProSpector 2 Handheld XRF Analyzer
?
Overview：
ProSpector 2 is our time-tested handheld XRF analyzer.
Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. lt is an intuitive and user-friendly instrument for highly accurate elemental analysis in a variety of applications.
?Features:
1.High speed of operation @ above 500 000 CPS count rate
2.Ambient temperature and pressure corrections for highest stability
3.Over 10 hours operation from the battery
4.Detector protection
5.Extensive and editable alloy grade library
6.Protective film replacement with no tool required
7.Full compatibility with ElvaXTM PC software
8.Radiation safety: IR proximity sensor and low count detection
????????????
Specifications:
Digital X-Ray Source digiX-40
Anode: Rh, W Voltage: 40 kV
Current: 200 uАmp
Power: 4 W
5 positions filter changer
X-Ray Detector
Type: Si-PIN-Diode , Large area SDD
Energy resolution: <140 eV @ 5.9 keV Count rate: 500,000 cps
Electronics
DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate MCA: 4096 channels
Display: 4.3’
Connectivity: USB, Bluetooth
High resolution video camera (option)
General
Dimensions: 242 х 230 х 78 mm
Weight: 1.4 kg
Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations
ProSpector 2 models
|
|
ProSpector 2 |
ProSpector 2LE |
|
X-Ray |
Tube W. 40 kV |
Rh (w.Ag).40 kv |
|
Primary Filters |
Single |
Automatic 5-position changer |
|
Collimators |
Single |
Single |
|
X-Ray Detector |
Si-PIN-Diode |
Large area SDD |
|
Detection Range |
Cl-U |
Mg-U |
|
CCD Camera |
No |
Simple view(option) |
|
Temperature correction |
Yes |
Yes |
|
Barometric correction |
No |
Yes |
|
Bluetooth |
Option |
Option |
|
Wi-Fi |
No |
Option |
|
Ingress Protection |
IP54 |
IP54 |
